Seperate Modules


wanareef
 Share

Recommended Posts

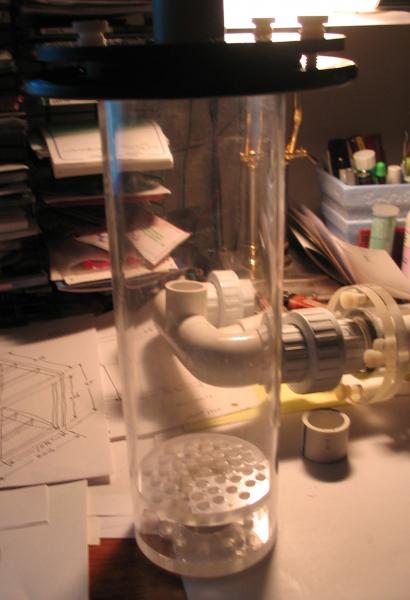

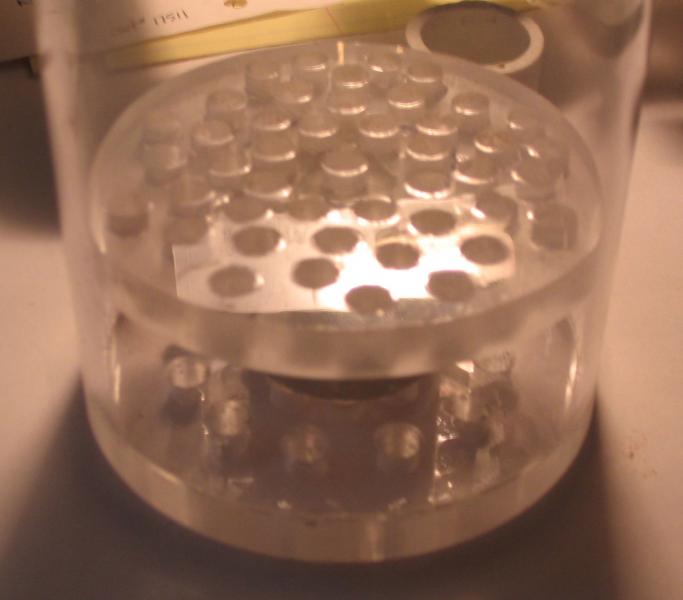

Had some time, scrap material so I decided to make some modules for my new build. This one is a carbon module for running carbon only. It's only 3.25" acrylic cast tube, too small for a skimmer but too good to throw away.



Total height is 12" and I will have a bracket under the flange to fit on the sump wall, just an easy lift and place bracket. I'll show that when I make it - be soon.

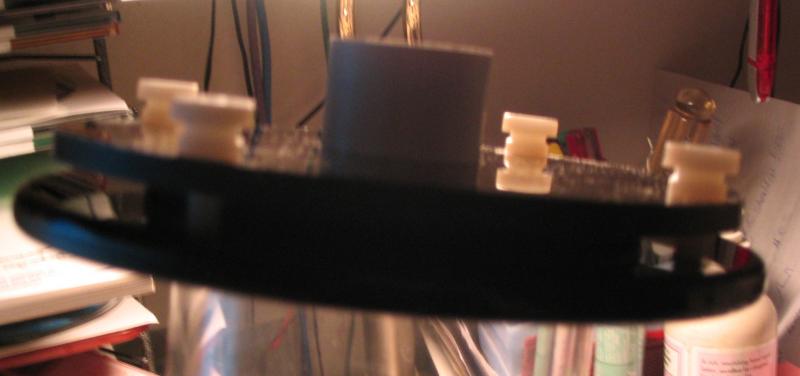

The lid has an "O" ring for sealing and not keyholed lid. The top was made from a piece of scrap that was a little samller than the existing flange. There is a 1" PCV going thru the top lid, to this I will have a union for quick on and off of the unit. There will be several units on this line how it's going to be fed is still in the design stage (haven't made up my mind yet)DOH!





The other modules will be Phosban, and a Coil denitrator
